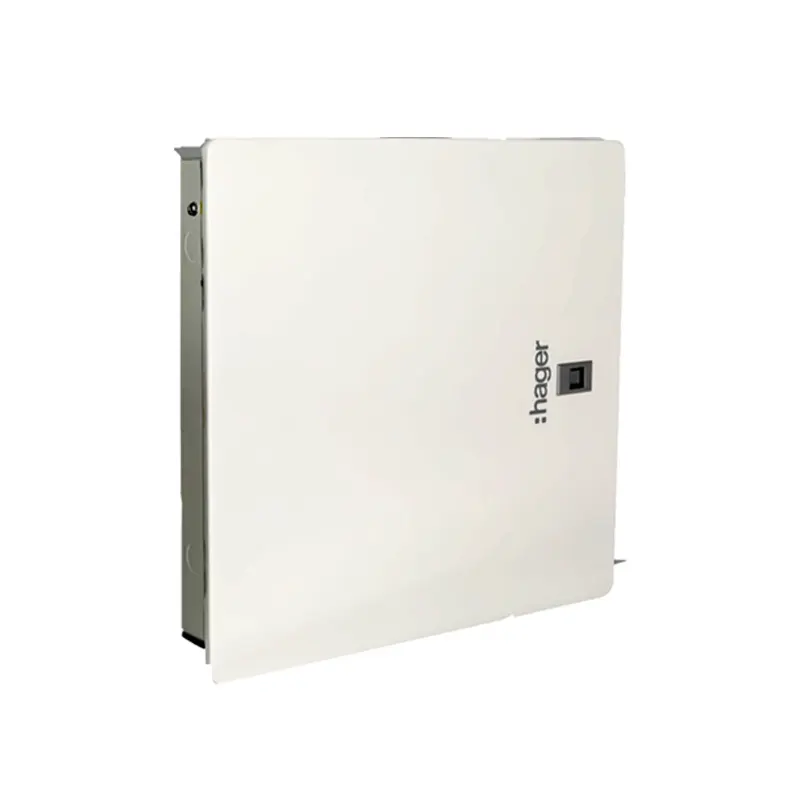

Aptis+ Enclosures
The new Aptis+ enclosure is primarily designed for residential applications.
FEATURES :
- Perfect solution for residential buildings
- Rounded door edge for modern look
- Strong, compact & reliable design
Range Expansion – Aptis+ : VTPN DB
The new Aptis+ enclosure is primarily designed for residential applications.
FEATURES :
| Sr No | Specs – VTPN DB |
|---|---|
| 1 | Standard Compliance – IS/IEC 61439 |
| 2 | Range – 4, 6, 8, 12, 16 way |
| 3 | Material – As per GA drawing |
| 4 | Colour – RAL 9016 |
| 5 | Gland plate – Screw based |
| 6 | Door Opening – 120° |
| 7 | Integrated earthing – Yes |
| 8 | Gasket – Yes |
| 9 | Door overlapping – Yes |
| 10 | Neutral terminal – Yes |
| 11 | Separate packing – Yes |
| 12 | Cement spill protector – Yes |
| 13 | Anti wall marking – Yes |
| 14 | Cu bus bar – Yes |
Benefits :
- IK09 strength
- Flexible installation
- Reversible door
- 120° opening
- Reliable
- Brass N & E link
- Cement spill protection

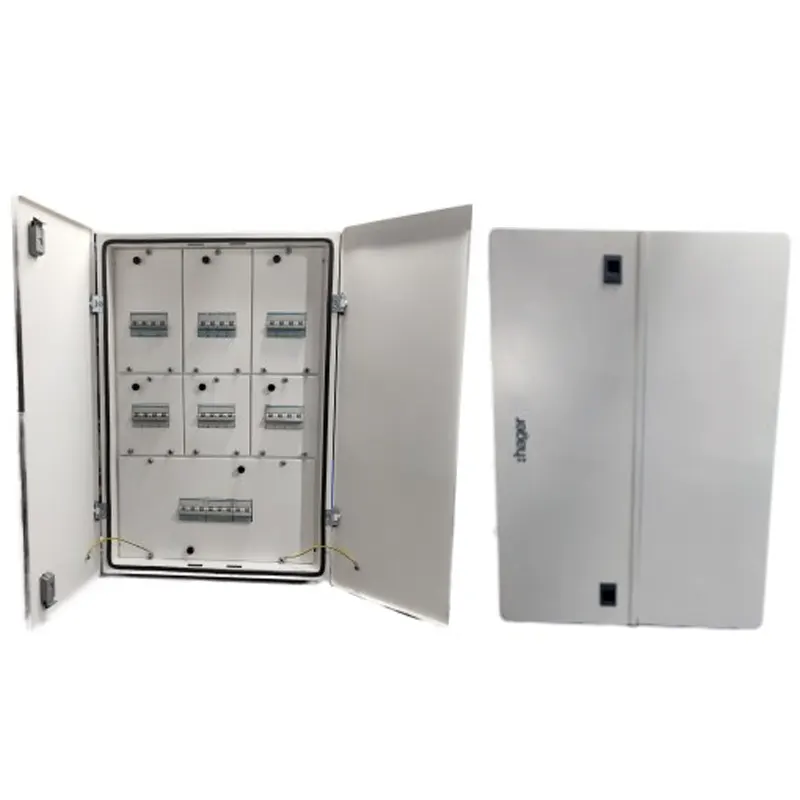

Range Expansion – Aptis+ : PSG DB
FEATURES :
| Sr No | Specs – PSG DB |
|---|---|
| 1 | Standard – IS/IEC 61439 |
| 2 | Range – 4, 6, 8, 10, 12, 16 way |
| 3 | Material – As per GA drawing |
| 4 | Colour – RAL 9016 |
| 5 | Gland plate – Screw based |
| 6 | Door opening – 120° |
| 7 | Earthing – Yes |
| 8 | Gasket – Yes |
| 9 | Door overlapping – Yes |
| 10 | Neutral terminal – Yes (04 nos) |
| 11 | Separate packing – Yes |
| 12 | Cement spill protector – Yes |
| 13 | Anti wall marking – Yes |
| 14 | 100A Cu bus bar – Yes |
Benefits :
- IK09 strength
- Flexible installation
- Reversible door
- 120° opening
- Reliable
- Brass N & E link

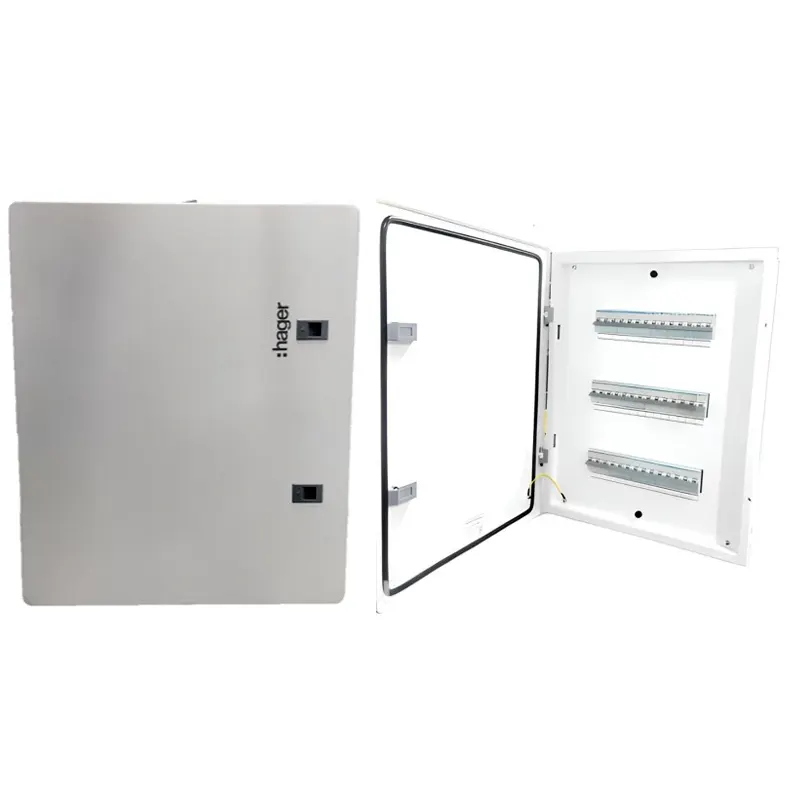

Range Expansion – Aptis+ : Flexi DB
FEATURES :
| Sr No | Specs – Flexi DB |
|---|---|
| 1 | Standard – IS/IEC 61439 |
| 2 | Range – 28M, 42M, 40M, 56M, 64M |
| 3 | Material – As per GA drawing |
| 4 | Colour – RAL 9016 |
| 5 | Gland plate – Screw based |
| 6 | Door opening – 120° |
| 7 | Earthing – Yes |
| 8 | Gasket – Yes |
| 9 | Door overlapping – Yes |
| 10 | Neutral terminal – Yes |
| 11 | Separate packing – Yes |
| 12 | Cement spill protector – Yes |
| 13 | Anti wall marking – Yes |
| 14 | Cu bus bar – Yes |
Benefits :
- IK09 strength
- Flexible installation
- Reversible door
- 120° opening
- Reliable
- Brass N & E link

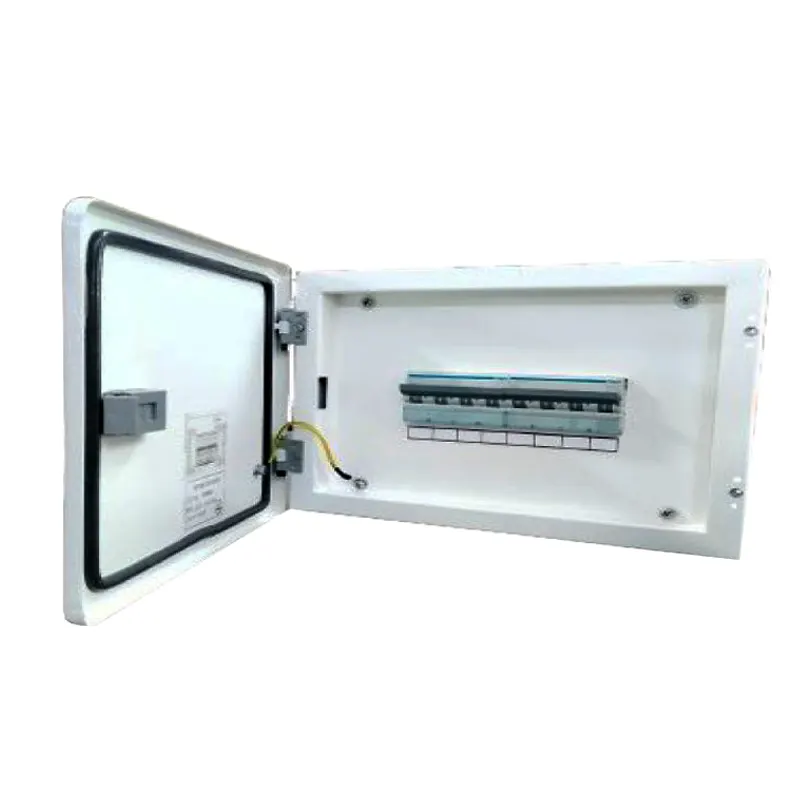

Range Expansion – aptis+ : One way Enclosure & Accessories
FEATURES :
| Sr No | Specs – One way Enclosure | |
|---|---|---|
| 1 | Standard Compliance | IS/IEC 61439 |
| 2 | Range | 2M, 4M, 6M, 8M (IP20) |
| 3 | Material & Material Thickness | As per GA drawing |
| 4 | Colour | RAL 9016 (Traffic white) |
| 5 | Gland plate | Screw based |
| 7 | Integrated earthing on door | Yes |
| Sr No | Accessories | |
|---|---|---|
| 1 | Cable End Box | SPN, TPN, Flexi, VTPN, PSG |
| 2 | PPI Kit | For TPN DB to PPI DB conversion |
